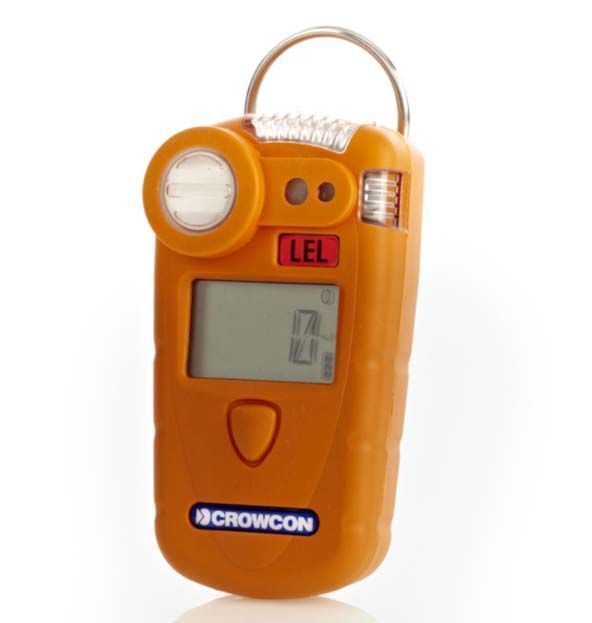

Mjerač plina GASMAN C2H4 Ethylene

Mjerač plina GASMAN C2H4 Ethylene

Dostupnost:

Dostupno po isteku zaliha
Usporedi
PDV uračunat u cijenu

Mjerač plina Gasman za zaštitu osoblja, sa opcionalnim spremnikom podataka (data-loger), software i data-kabel
ATEX II 1G EEx ia IIC T4 / ATEX II 2G EEx ia d IIC T4

468,75 €

Dostupno po isteku zaliha

Mjerač plina GASMAN-C2H4

Njegov lagani i kompaktni dizajn prikladan je za gradilišta gdje radnici ne moraju biti opterećeni prevelikim teretom i opremom. Jedinica se praktično pričvršćuje na džep ili kacigu i radi neprekidno.

Gasman osobni plinski monitor ima brojne praktične značajke kao što su:

Tehnologija s jednim gumbom
LCD zaslon s pozadinskim osvjetljenjem
Izdržljivo kućište od polikarbonata
Trostruki sustav dojave s brzim odgovorom
Kompaktan i lagan dizajn



Opseg isporuke:
1 x Mjerač plina Gasman (odabrati vrstu plina), 1 x klip za džep, 1 x baterija ili nadopunjiv akumulator (prema vrsti plina), uputstvo



SKU: GASMAN-C2H4 Kategorija:
Težina 0,13 kg
Dimenzije 90 × 48 × 24 cm

Specifikacije

SPECIFIKACIJE

Weight 130g flammable
95g oxygen
80g toxic
Dimensions 90x48x24mm (3.5×1.9×0.95inch) HxWxD
Typical ranges and alarms
Gas  Range  Alarm UK and ROW  Alarm US
Flammable  0-100% LEL  20% LEL 10% LEL
Oxygen  0-25%  19.5/23.5%  19.50%
Hydrogen Sulphide  0-100ppm  5ppm  10ppm
Carbon Monoxide  0-500ppm  30ppm  35ppm
Sulphur Dioxide  0-20ppm  1ppm  2ppm
Chlorine  0-20ppm  0.5ppm  0.5ppm
Nitrogen Dioxide  0-20ppm  1ppm  3ppm
Ammonia  0-100ppm  25ppm  25ppm
Ozone  0-1ppm  0,1.ppm  0.1ppm
Hydrogen  0-1000ppm  N/A  N/A
Hydrogen Cyanide  0-25ppm  5ppm  5ppm
Hydrogen Chloride  0-30ppm  1ppm  1ppm
Hydrogen Fluoride  0-10ppm  5ppm  5ppm
Phosphine  0-5ppm  0.2ppm  0.2ppm
Fluorine  0-1ppm  0.1ppm  0.1ppm
Phosgene  0-1ppm  0.1ppm  0.1ppm
Ethylene Oxide  0-10ppm  5ppm  5ppm
Nitric Oxide  0-100ppm  25ppm  50ppm

Other ranges and alarm levels are available on request. Each unit can have two instantaneous alarms levels set. Toxic units also have Time Weighted Average alarms.

Flammable gas calibration is available for methane, propane, butane, pentane, hydrogen and ethylene as standard.
Typical response times Flammable 20s, Toxic gas 20s, Oxygen 10s
Audible Alarms 95dBA
Multiple alarm sounds allow selection of distinctive tones for different alarm levels.
Visible Alarms Dual colour red/blue flashing LEDs in gas hazard
Vibrating Alarm Internal vibrating alarm
Display Custom LCD with backlight, with display of gas concentration. Graphic symbols for battery (with proportional indication of remaining operation time), and display mode. Start up indication when calibration is due within 30 days, calibration overdue, or service required.
Display Mode Normal display for real time gas concentration levels. Display recall for Peak readings and TWA.
Datalogging

Full timed datalogging with adjustable sample rate, set to 1 minute data rate.
900 hours storage at 1 minute interval.
>4800 capacity event logging to record all instrument events including:
Switch on/off, Battery status, Alarms activate/clear including peak values of response, Gas Test pass or fail.
All events are time stamped
BatteryTypes Rechargeable Li-ion battery for all gas types
Non rechargeable Lithium battery for toxics and oxygen
Operating Time

Rechargeable: 12 hours minimum for flammable unit
Non rechargeable: Up to 2 years
Sampling Optional manual aspirator
Operating temp, range –20°C to +65°C (-4°F to +149°F)
Humidity 0-99% RH
Approval Codes
Europe

ATEX II 1G EEx ia IIC T4 (Tamb -20°C to +65°C) Toxic Oxygen
ATEX II 2G EEx iad IIC T4 (Tamb -20°C to +65°C) Flammable
USA/Canada Class 1 Groups A, B, C, D Division 1
Standards Safety
Europe EN50014, EN50020, EN50018, 94/9/EC
USA & Canada UL913, CSA22.2, 152
Operation EN50270, EN50271, IEC61508, EN61779, EN45544
Software designed to meet IEC61508
Ingress Protection IP65 and IP67
PC Interface RS232 connection from Interface module in charger.
RS232/USB convertor available
Calibration Gasman can be routinely calibrated using
Portables PC software or by using Checkbox IMH
Accessories Gasman is supplied with an integral pocket clip. optional alligator clip
Charger Single way drop in charger with options of UK, European or US style plug in mains supplies, or in line 115V, 230V or universal supply.
Optional PC interface module within the single way charger.
Vehicle lighter socket lead available.
5 way multicharger with universal power supply.

Pribor

Klikom na šifru proizvoda otvaraju se kompletni podaci i cijene!

Gasman-Log

Dodatna cijena za  Logger-funkciju

LADE-G-N

Punjač Gasman “zapaljivi plinovi”

INT-G-N

Punjač / Interface Gasman

RS232-G-N

RS-232 Data-kabel Gasman

RS232-USB

Adapter RS232 na USB

SW-G-N

Software Gasman

ASP-G-N

Aspiratorski set – pumpe Gasman
